    Siemens 6AV6647-0AK11-3AX0 KTP1000 Basic

    Siemens 6AV6647-0AK11-3AX0 KTP1000 Basic

    € 376,00 – € 999,00Price range: € 376,00 through € 999,00

    Reset
    Clear
    SKU: 6AV6647-0AK11-3AX0 Category: HMI & Display Brand: Siemens
    • Description
    • Additional information

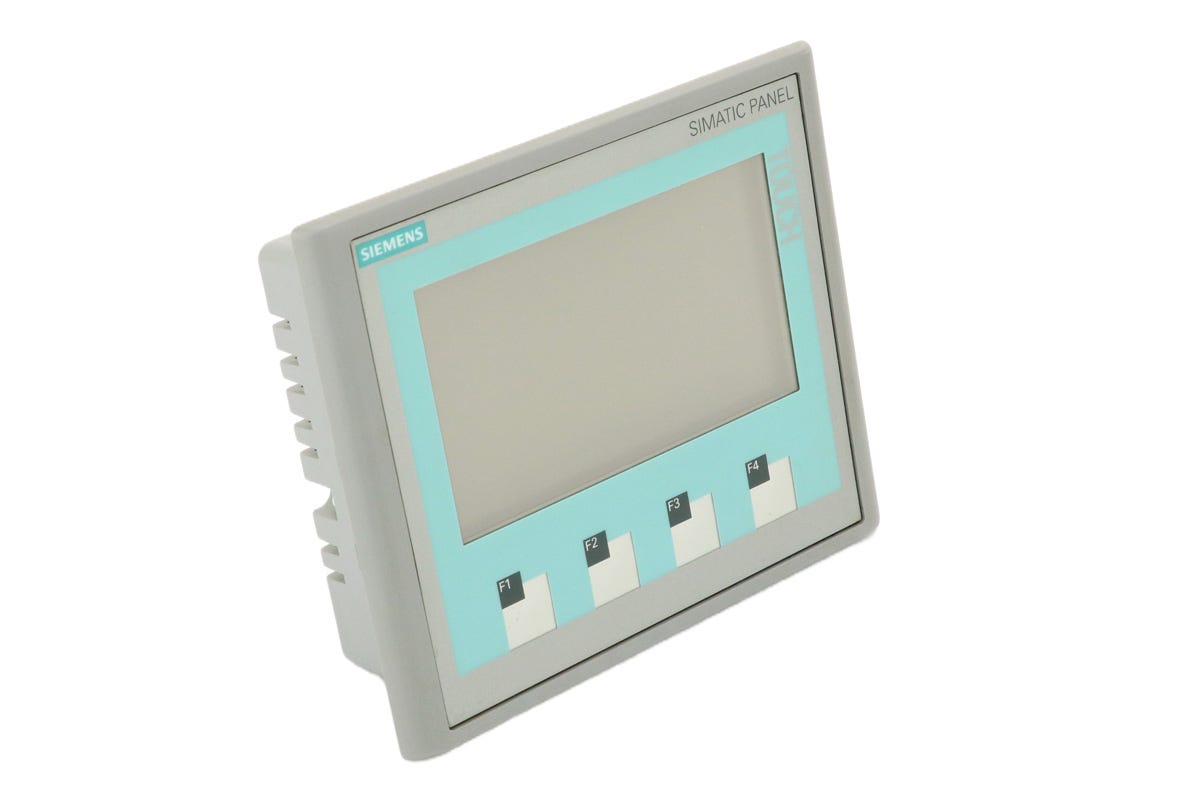

    The Siemens KTP1000 Basic (part number 6AV6647-0AK11-3AX0) is a key and touch-operated HMI panel belonging to the SIMATIC Basic Panel series. It features a 10.4-inch TFT display and is designed for straightforward machine-level visualization tasks. This panel is part of Siemens' entry-level HMI lineup, engineered for cost-effective yet reliable human-machine interface applications.

    The KTP1000 Basic is equipped with a 10.4-inch TFT color display with a resolution of 640 x 480 pixels (VGA) and supports 256 colors. It combines touch operation with 8 configurable function keys, offering flexible operator input options. The panel communicates via PROFINET (Ethernet) and supports the SIMATIC S7 protocol, making it compatible with S7-200, S7-300, S7-400, and S7-1200 PLCs. It operates on a 24 V DC supply and includes 10 MB of user memory for project data. Configuration is performed using Siemens WinCC flexible 2008 or TIA Portal WinCC Basic software.

    The KTP1000 Basic is widely used in manufacturing automation, packaging machinery, material handling systems, and process control panels. Its combination of touch and key operation makes it suitable for environments where operators require tactile feedback alongside graphical visualization. The panel's compact design and PROFINET connectivity make it a practical choice for integration into standard machine control cabinets across industries such as food and beverage, automotive, and general factory automation.

    Technical Specifications

    Display Size 10.4 inch
    Display Type TFT color
    Display Resolution 640 x 480 pixels (VGA)
    Display Colors 256
    Touch Technology Resistive touch screen with 8 function keys
    Input/Operating Voltage 24 V DC
    Power Consumption Max. 18 W
    Communication Interface PROFINET (1x RJ45 Ethernet)
    User Memory 10 MB
    Operating Temperature 0 °C to +50 °C
    Storage Temperature -20 °C to +60 °C
    Relative Humidity 10% to 90% (non-condensing)
    IP Rating (Front) IP65
    IP Rating (Rear) IP20
    Mounting Panel mounting
    Certifications CE, UL, cULus
    Configuration Software WinCC flexible 2008 SP3 or TIA Portal WinCC Basic

    Common Error Codes & System Events

    Event ID: 10000
    Communication error between HMI panel and PLC. The configured connection to the controller cannot be established or has been lost.
    Check PROFINET cable and RJ45 connector integrity. Verify PLC IP address and subnet settings match the HMI project configuration. Confirm the PLC is in RUN mode.
    Event ID: 10001
    Connection to PLC timed out. The HMI did not receive a response from the controller within the expected time window.
    Check network switch or direct cable connection. Verify PLC program is running and the communication block is active. Reduce polling cycle time if network load is high.
    Event ID: 20000
    Tag read error. The HMI attempted to read a tag address that does not exist or is out of range in the PLC.
    Verify the tag address configured in WinCC flexible or TIA Portal matches the actual PLC data block or memory address. Correct any address mismatches in the project.
    Event ID: 20001
    Tag write error. A write operation to a PLC tag failed, possibly due to an invalid address or write-protected memory area.
    Check that the target PLC address is writable and within the valid address range. Confirm the PLC is not in a state that prevents external writes.
    Event ID: 40000
    Project download error. A mismatch exists between the HMI firmware version and the project compiled in the configuration software.
    Ensure the project is compiled with a WinCC flexible or TIA Portal version compatible with the panel firmware. Update panel firmware if necessary and re-download the project.
    Event ID: 50000
    System memory low. The HMI panel is running low on available runtime memory, which may cause instability or slow response.
    Reduce the number of active screens, limit the use of large graphics or animations, and optimize the project. Consider archiving historical data to an external storage device.
    Event ID: 70000
    Firmware update failed or interrupted during the update process, leaving the panel in an inconsistent state.
    Restart the panel and attempt the firmware update again using ProSave or TIA Portal. Ensure stable 24 V DC power supply during the update process.

    Frequently Asked Questions

    Which PLCs are compatible with the KTP1000 Basic 6AV6647-0AK11-3AX0?

    The KTP1000 Basic supports SIMATIC S7-200, S7-300, S7-400, and S7-1200 PLCs via PROFINET. It uses the SIMATIC S7 communication protocol and is configured through WinCC flexible 2008 or TIA Portal WinCC Basic.

    What configuration software is required for this panel?

    The panel can be configured using Siemens WinCC flexible 2008 SP3 or later, or Siemens TIA Portal with WinCC Basic. The project must be compiled for the KTP1000 Basic device type before downloading.

    Does the KTP1000 Basic support USB connectivity?

    Yes, the KTP1000 Basic includes a USB Type-A port that can be used for project transfer via USB flash drive and for connecting a USB mouse or keyboard during commissioning.

    What is the front panel protection rating of this HMI?

    The front panel of the KTP1000 Basic is rated IP65, making it protected against dust ingress and low-pressure water jets. The rear of the panel is rated IP20.

    Can the display backlight be replaced in the field?

    The backlight on the KTP1000 Basic is not designed for field replacement by end users. If the backlight fails, the panel typically requires professional repair or replacement of the display assembly.

    Troubleshooting

    Display remains blank after power on

    Measure the 24 V DC supply voltage at the panel's power connector. Check that polarity is correct and voltage is within the 19.2–28.8 V DC operating range. Inspect for any visible damage to the power connector.

    Correct the supply voltage if out of range. If voltage is correct and display remains blank, the internal power supply or backlight may have failed. The panel should be sent for professional repair or the display assembly replaced.

    HMI shows 'No connection to PLC' message at runtime

    Verify the PROFINET cable is securely connected to the RJ45 port. Use a network ping test from a PC to confirm the PLC is reachable on the network. Check that the IP address configured in the HMI project matches the PLC's actual IP address.

    Correct any IP address or subnet mismatches in the WinCC flexible or TIA Portal project and re-download. Replace the Ethernet cable if faulty. Ensure the PLC is powered and in RUN mode.

    Touchscreen does not respond or responds inaccurately

    Check for physical damage or contamination on the touch surface. Attempt a touchscreen recalibration through the panel's Start Center or Control Panel menu. Verify that no external pressure is being applied to the panel bezel.

    Clean the touch surface with a soft, dry cloth. Perform a touchscreen calibration via the operating system settings. If calibration does not resolve the issue, the resistive touch overlay may be damaged and require replacement.

    Project download fails or panel is not detected by configuration PC

    Check the USB or Ethernet connection between the PC and the panel. Confirm the panel is in Transfer mode (accessible via the Start Center on the panel). Verify that the correct communication channel is selected in WinCC flexible or TIA Portal.

    Switch the panel to Transfer mode manually via the Start Center. Ensure the PC firewall is not blocking the Siemens communication software. Try a different USB cable or Ethernet port, and verify the correct device driver is installed on the PC.

    Panel restarts repeatedly or enters a boot loop

    Check the 24 V DC supply for voltage drops or instability under load. Inspect the project for any corrupted screens or scripts that may cause a runtime crash. Attempt to boot the panel without a project loaded to isolate whether the issue is hardware or software related.

    Stabilize the power supply and ensure adequate current capacity (minimum 1 A at 24 V DC). Use ProSave to perform a factory reset and re-download a known-good project. If the boot loop persists without a project, the panel hardware requires professional service.

    Condition

    Repair, Used, Refurbished, New in box (sealed)
