Siemens 6AV6643-0DD01-1AX1 TP277

Name: Siemens 6AV6643-0DD01-1AX1 TP277
Brand: Siemens
SKU: 6AV6643-0DD01-1AX1
Availability: InStock

Price range: € 1.049,00 through € 2.869,00

Condition

Clear

SKU: 6AV6643-0DD01-1AX1 Category: HMI & Display Brand: Siemens

Description
Additional information

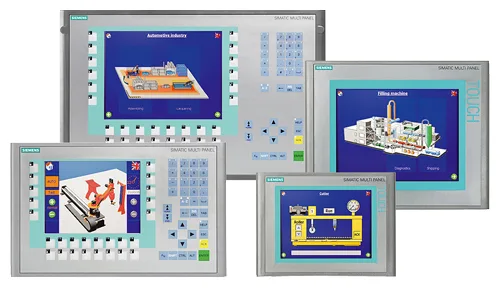

The Siemens 6AV6643-0DD01-1AX1 is a Touch Panel HMI device belonging to the SIMATIC TP277 series, part of Siemens' SIMATIC HMI 270 panel family. It is a 10.4-inch TFT color touchscreen operator panel designed for machine-level visualization and operator control in industrial automation environments. This unit is engineered for direct integration with Siemens SIMATIC S7 PLCs and other compatible controllers via multiple communication interfaces.

The TP277 10" features a 10.4-inch TFT display with a resolution of 640 x 480 pixels (VGA) and supports 256 colors. It is equipped with a resistive analog touchscreen and runs on the Windows CE 5.0 operating system. The panel includes 6 MB of user memory for project data, supports MPI, PROFIBUS DP, and Ethernet (TCP/IP) communication interfaces, and provides a USB port for data transfer and peripheral connection. Configuration is performed using Siemens WinCC flexible 2005 or later engineering software.

The SIMATIC TP277 10" is widely deployed in manufacturing, automotive, food and beverage, chemical processing, and packaging industries. It is typically mounted in control cabinet doors or operator stations where a robust, mid-size touchscreen interface is required for process monitoring, alarm management, and parameter adjustment. Its compatibility with the SIMATIC S7-300 and S7-400 controller families makes it a standard choice for machine-level HMI applications in these sectors.

Technical Specifications

Display Size	10.4 inch
Display Resolution	640 x 480 pixels (VGA)
Display Colors	256 colors
Display Type	TFT LCD
Touch Technology	Resistive analog touchscreen
Operating System	Windows CE 5.0
User Memory	6 MB
Input/Operating Voltage	24 V DC
Power Consumption	Max. 20 W
Communication Interface	MPI, PROFIBUS DP, Ethernet (TCP/IP), USB
Operating Temperature	0 °C to +50 °C
Storage Temperature	-20 °C to +60 °C
Relative Humidity	10% to 90% (non-condensing)
IP/Protection Rating	IP65 (front), IP20 (rear)
Mounting	Panel mounting
Certifications	CE, UL, cULus
Series/Product Family	SIMATIC HMI TP277

Common Error Codes & System Events

Event ID: 10000: Configuration error: The project loaded on the panel is incompatible with the current firmware version or hardware configuration.
Reload the project using a compatible version of WinCC flexible. Verify firmware version matches project requirements.
Event ID: 20000: Communication error: Connection to the PLC has been lost or cannot be established.
Check MPI/PROFIBUS/Ethernet cabling and connector integrity. Verify PLC address settings and communication parameters in the project configuration.
Event ID: 40000: Tag read/write error: A process tag could not be read from or written to the connected controller.
Verify the tag address in WinCC flexible matches the actual PLC data block or memory address. Check PLC program for address conflicts.
Event ID: 50000: System memory low: Available runtime memory is critically low, which may cause instability or project loading failures.
Reduce the project size, limit the number of active screens or logged tags, and restart the panel to free memory resources.
Event ID: 60000: Backup/restore error: A project backup or restore operation failed during execution.
Ensure the USB storage device is properly formatted (FAT32) and has sufficient free space. Retry the backup/restore operation.
Event ID: 70000: Printer communication error: The panel cannot communicate with the configured printer.
Check printer connection and driver settings. Verify the printer is powered on and configured correctly in the HMI project settings.
Event ID: 80000: Recipe data error: A recipe transfer to or from the PLC has failed.
Check recipe configuration in WinCC flexible. Verify PLC data block addresses assigned to recipe tags are accessible and correctly sized.

Frequently Asked Questions

What engineering software is required to configure the TP277 10"?

The SIMATIC TP277 10" (6AV6643-0DD01-1AX1) is configured using Siemens WinCC flexible 2005 or later versions. WinCC flexible Compact, Standard, or Advanced editions are all compatible depending on project complexity.

Which PLCs are compatible with the Siemens 6AV6643-0DD01-1AX1?

This panel is compatible with Siemens SIMATIC S7-200, S7-300, and S7-400 PLCs via MPI or PROFIBUS DP, and with S7-300/400 via Ethernet. Third-party controllers supporting standard protocols such as Modbus RTU or TCP may also be connected.

What communication interfaces are available on the TP277 10"?

The panel provides an MPI/PROFIBUS DP interface (RS-485), an Ethernet RJ45 port (10/100 Mbit/s), and a USB Type-A port for data transfer and peripheral devices.

What is the supply voltage for the 6AV6643-0DD01-1AX1?

The panel operates on 24 V DC nominal supply voltage. Ensure the power supply is rated for at least 20 W to ensure stable operation.

What is the front panel protection rating of the TP277 10"?

The front panel of the TP277 10" carries an IP65 protection rating, making it suitable for installation in environments where dust and water jets may be present. The rear of the unit is rated IP20.

Troubleshooting

Display remains blank after power on

Check the 24 V DC supply voltage at the power connector. Verify the supply is within the acceptable range and delivering sufficient current. Inspect internal fuses if accessible.

Ensure the 24 V DC power supply is stable and correctly wired. If the backlight has failed, the panel may require backlight or display assembly replacement. If no power is detected, inspect wiring and the power supply unit.

Touchscreen does not respond or responds inaccurately

Determine whether the issue is a complete lack of response or positional inaccuracy. A miscalibrated touchscreen will register touches at incorrect coordinates, while a failed touch controller will show no response at all.

Perform a touchscreen recalibration via the Windows CE Control Panel or the Siemens Start Center on the panel. If recalibration does not resolve the issue, the resistive touchscreen overlay may be damaged and require replacement.

Panel fails to establish communication with the PLC

Verify the communication cable type and wiring (MPI, PROFIBUS, or Ethernet). Check that the PLC address and baud rate configured in the HMI project match the actual PLC settings. Use a bus diagnostic tool to check for bus termination issues on PROFIBUS networks.

Correct any address or baud rate mismatches in WinCC flexible and reload the project. Replace damaged cables or connectors. Ensure PROFIBUS bus termination resistors are correctly placed at both ends of the network segment.

Project fails to load or panel displays a configuration error after startup

The loaded project may be incompatible with the current firmware version on the panel, or the project file may be corrupted. Check the firmware version in the Siemens Start Center and compare it with the project's target device settings in WinCC flexible.

Update the panel firmware to the version required by the project using the Siemens ProSave tool, or recompile the project targeting the installed firmware version and transfer it again via USB or Ethernet.

Panel restarts repeatedly or freezes during operation

This may be caused by insufficient supply voltage, overheating, or a corrupted runtime project. Check the ambient temperature around the panel and verify the supply voltage under load conditions.

Ensure the operating environment does not exceed 50 °C and that ventilation around the panel is adequate. Verify the 24 V DC supply is stable under load. Reload the project from a known-good backup. If the issue persists, the panel may require servicing or replacement of internal components.

Condition	Repair, Used, Refurbished, New in box (sealed)
